Zone Air® Airframe DUAL ZONE 21,500 BTU (12K+9.5K) 21 SEER2 230V Ceiling Cassette Mini-Split Heat Pump System with 2x Pre-Charged Linesets - Up to 1,075 Sq Ft
$5,099.99
Sale price
$5,099.99
Regular price
Skip to product information
Zone Air® Airframe DUAL ZONE 21,500 BTU (12K+9.5K) 21 SEER2 230V Ceiling Cassette Mini-Split Heat Pump System with 2x Pre-Charged Linesets - Up to 1,075 Sq Ft
$5,099.99
Sale price
$5,099.99
Regular price

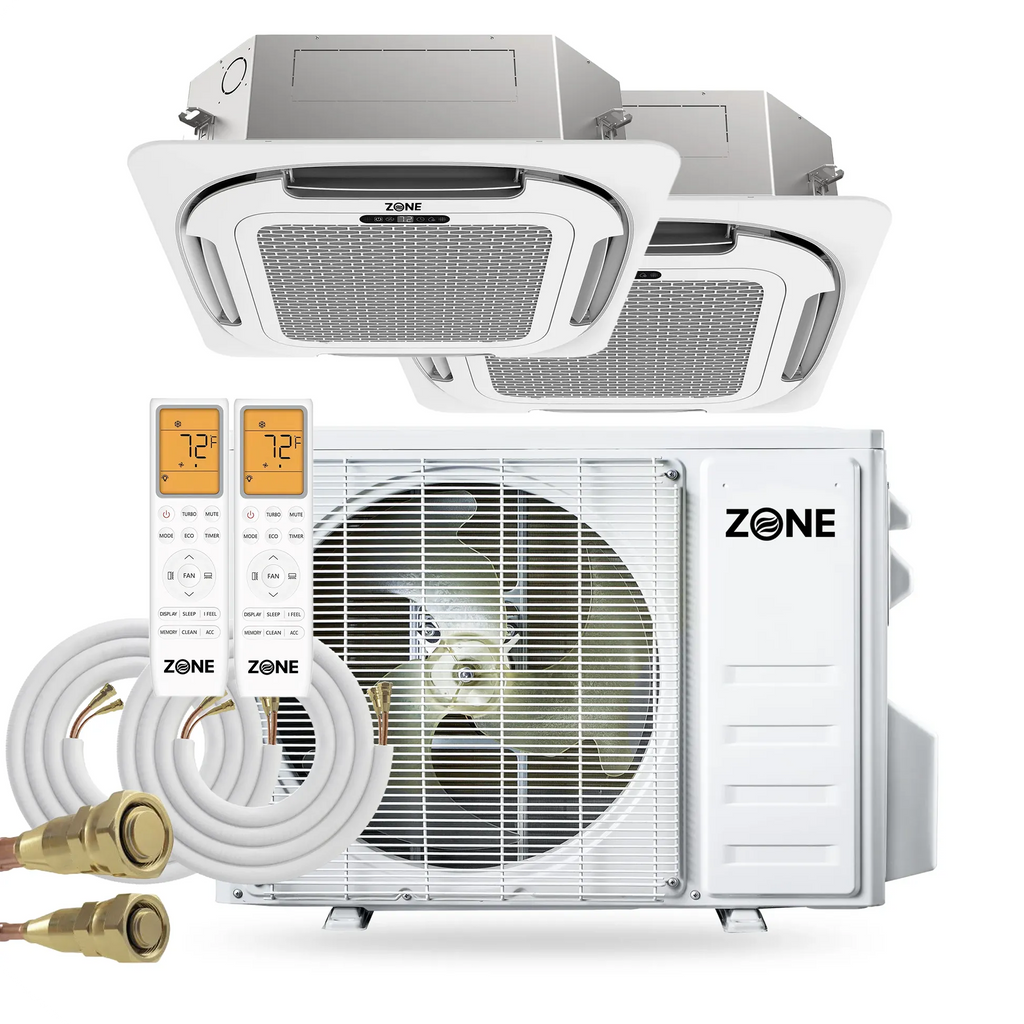

Versatile dual-zone ceiling cassette pairing a 12,000 BTU unit with a 9,500 BTU unit for two rooms totaling up to 1,075 square feet. 4-way air distribution from each cassette. Ideal for a larger conference room or living area paired with a smaller office or bedroom.
Specifications
| Total Cooling Capacity | 21,000 BTU/h |
|---|---|
| Per Zone Capacity | 12,000 + 9,000 BTU/h |
| Total Heating Capacity | 22,000 BTU/h |
| SEER2 Rating | 21 |
| HSPF Rating | 10 |
| Voltage | 208-230V / 60Hz |
| Number of Zones | 2 |
| Refrigerant Type | R454B (pre-charged) |
| Indoor Units | 1× 12K + 1× 9K ceiling cassette units |
| Linesets Included | 2× 16 ft pre-charged |
| Operating Temperature | -13°F to 122°F |
| Sound Level (per unit) | 28–42 dB |
| Condensate Pumps | Integrated in each unit |
| Part Number | zdiy-cc-12I |
| Net Dimensions (WxDxH) | 25-5/8" x 25-5/8" x 22-1/2" |
| Carton Dimensions (WxDxH) | Coming soon |
| Net / Gross Weight | Coming soon |
