Zone Air® Thin-Air 9,500 BTU 19.6 SEER2 230V Concealed Mini-Split Heat Pump AC - Up to 475 Sq Ft
$2,299.99
Sale price
$2,299.99
Regular price

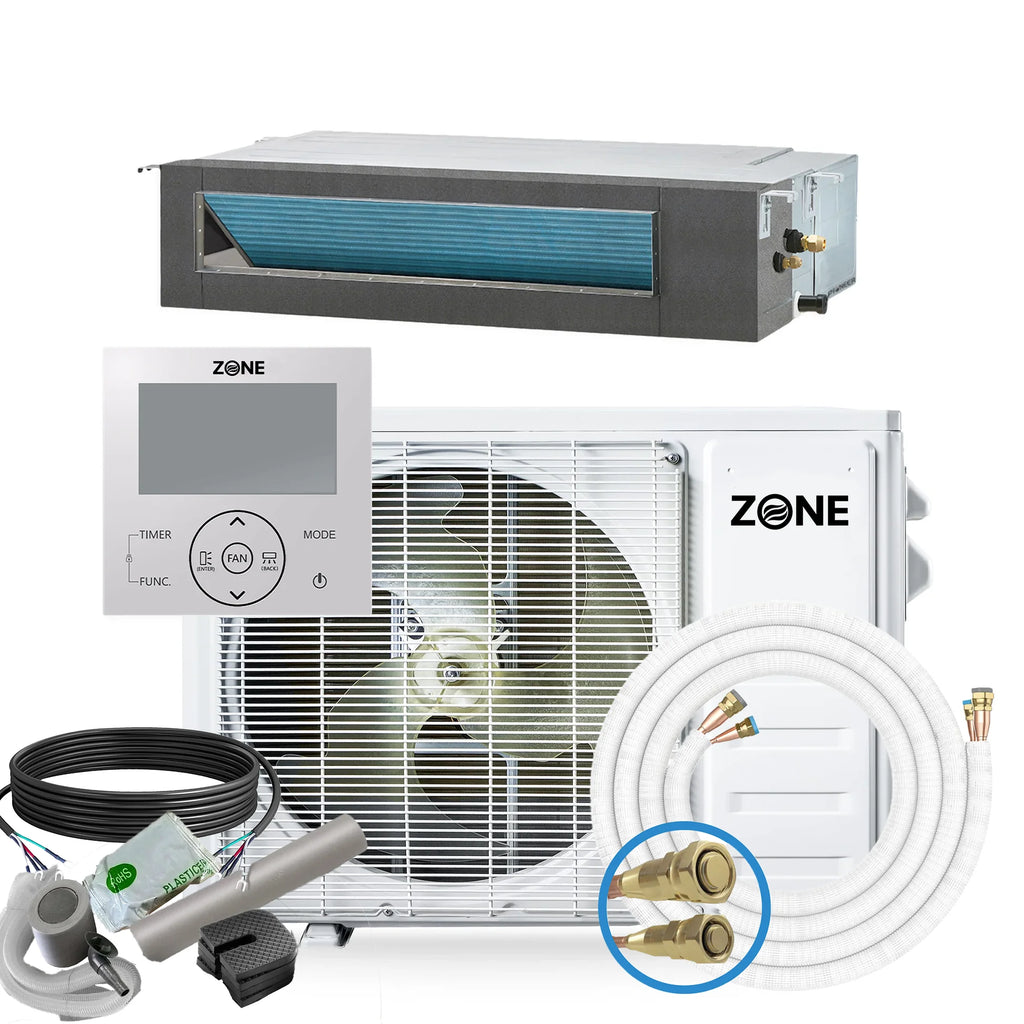

Completely hidden HVAC solution for the ultimate clean aesthetic. The concealed unit installs above ceilings or in closets with only discreet supply and return grilles visible. Connect to existing ductwork or add a fresh air intake for ventilation. Perfect for historic homes, luxury renovations, and spaces where visible HVAC is not acceptable.
Specifications
| Power Supply | 208~230V, 60Hz, 1Ph |
|---|---|
| Cooling Rated Capacity | 9,500 BTU/h |
| Cooling Capacity Range | 2,000~10,400 BTU/h |
| Cooling SEER2 | 19.6 |
| Cooling EER2 | 12.0 |
| Heating Rated Capacity | 9,500 BTU/h |
| Heating Capacity Range | 2,500~12,300 BTU/h |
| Heating HSPF2 (Region IV/V) | 10.0 / 8.8 |
| Heating COP2 (47°F/5°F) | 3.5 / 1.85 |
| Refrigerant Type | R454b (pre-charged) |
| Recommended Room Size | 300~475 sq ft |
| Indoor Air Flow (Turbo/Hi/Med/Lo/Mute) | 360 / 330 / 270 / 210 / 180 CFM |
| Indoor Sound Level (Turbo/Hi/Med/Lo) | 43 / 41 / 39 dB(A) |
| Indoor Unit Dimensions (WxDxH) | 27-1/2" x 19-1/4" x 7-7/8" |
| Indoor Unit Weight | 33.1 lbs |
| Indoor Carton Dimensions (WxDxH) | 35-1/2" x 21-7/8" x 9-7/8" |
| Indoor Net / Gross Weight | 33.1 / 40.8 lbs |
| Breaker Needed | 15A (double-pole) |
| Outdoor Sound Level | 52 dB(A) |
| Outdoor Unit Dimensions (WxDxH) | 31-7/8" x 12" x 21-5/8" |
| Outdoor Unit Weight | 58.4 lbs |
| Outdoor Carton Dimensions (WxDxH) | 32-7/8" x 13" x 22-5/8" |
| Outdoor Net / Gross Weight | 58.4 / 65.0 lbs |
| Lineset Length Included | 16 ft included (optional 9 ft extension available) |
| Part Number | zdiy-cd-9I |
| Air Flow (Turbo/Hi/Med/Lo/Mute) | 360 / 330 / 270 / 210 / 180 CFM |
| Net Dimensions (WxDxH) | 27-1/2" x 19-1/4" x 7-7/8" |
| Carton Dimensions (WxDxH) | 35-1/2" x 21-7/8" x 9-7/8" |
| Net / Gross Weight | 33.1 / 40.8 lbs |
| Sound Level | 52 dB(A) |
