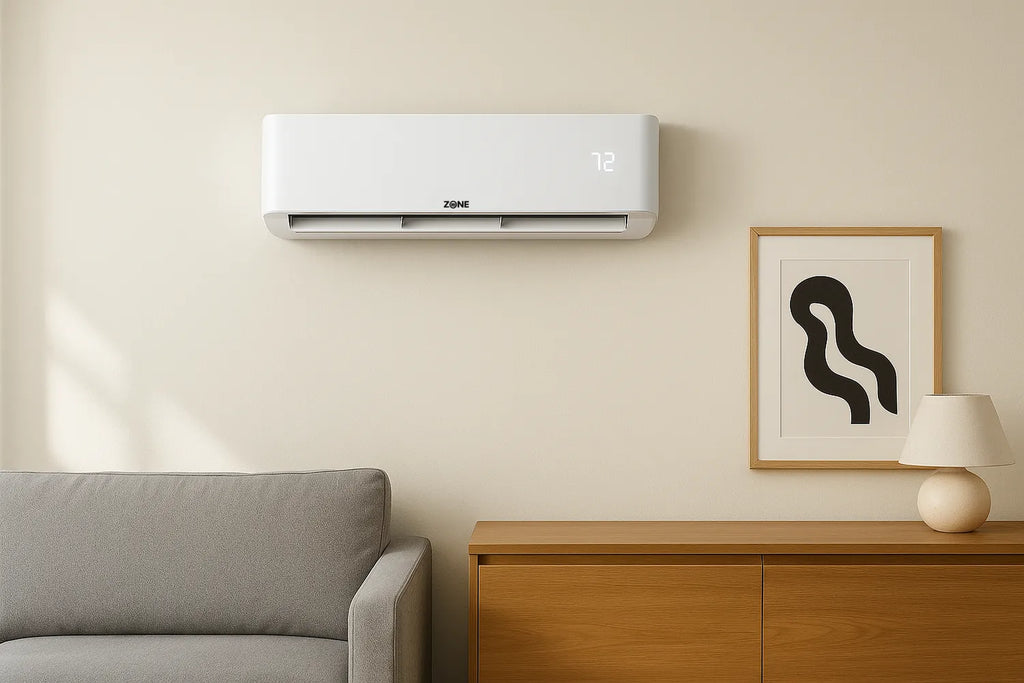

Zone Air® DIY 18,000 BTU 23.5 SEER2 230V Wall Mount Ductless Mini-Split Heat Pump AC and Heater with Pre-Charged Lineset - Up to 900 Sq Ft
$2,599.99
Sale price
$2,599.99
Regular price
Skip to product information
Zone Air® DIY 18,000 BTU 23.5 SEER2 230V Wall Mount Ductless Mini-Split Heat Pump AC and Heater with Pre-Charged Lineset - Up to 900 Sq Ft
$2,599.99
Sale price
$2,599.99
Regular price
Our most powerful single-zone system handles large rooms and open-concept spaces from 500 to 900 square feet. Exceptional heating performance makes this the professional choice for demanding applications.
Specifications
| Power Supply | 208~230V, 60Hz, 1Ph |
|---|---|
| Cooling Rated Capacity | 18,000 BTU/h |
| Cooling Capacity Range | 4,100~19,400 BTU/h |
| Cooling SEER2 | 23.5 |
| Cooling EER2 | 12.5 |
| Heating Rated Capacity | 18,000 BTU/h |
| Heating Capacity Range | 4,100~21,400 BTU/h |
| Heating HSPF2 (Region IV/V) | 10.0 / 8.8 |
| Heating COP2 (47°F/5°F) | 3.64 / 1.8 |
| Refrigerant Type | R454b (pre-charged) |
| Recommended Room Size | 500~900 sq ft |
| Minimum Room Size | 52 sq ft |
| Piping Diameter | 1/2" (Gas) / 1/4" (Liquid) |
| Indoor Air Flow (Turbo/Hi/Med/Lo/Mute) | 735 / 676 / 529 / 423 / 394 CFM |
| Indoor Sound Level (Turbo/Hi/Med/Lo/Mute) | 48 / 45 / 40 / 37 / 34 dB(A) |
| Indoor Unit Dimensions (WxDxH) | 43-1/8" x 8-3/4" x 13" |
| Indoor Unit Weight | 30.9 lbs |
| Breaker Needed | 30A (double-pole) |
| Outdoor Sound Level | 58 dB(A) |
| Outdoor Unit Dimensions (WxDxH) | 36-1/2" x 15" x 27-1/2" |
| Outdoor Unit Weight | 93.7 lbs |
| Lineset Length Included | 16 ft |
| Part Number | zdiy-mk1-18I |
| Air Flow (Turbo/Hi/Med/Lo/Mute) | 735 / 676 / 529 / 423 / 394 CFM |
| Sound Level (Turbo/Hi/Med/Lo/Mute) | 48 / 45 / 40 / 37 / 34 dB(A) |
| Net Dimensions (WxDxH) | 43-1/8" x 8-3/4" x 13" |
| Carton Dimensions (WxDxH) | 45-7/8" x 11-5/8" x 16" |
| Net / Gross Weight | 30.9 / 35.3 lbs |
| Sound Level | 58 dB(A) |
