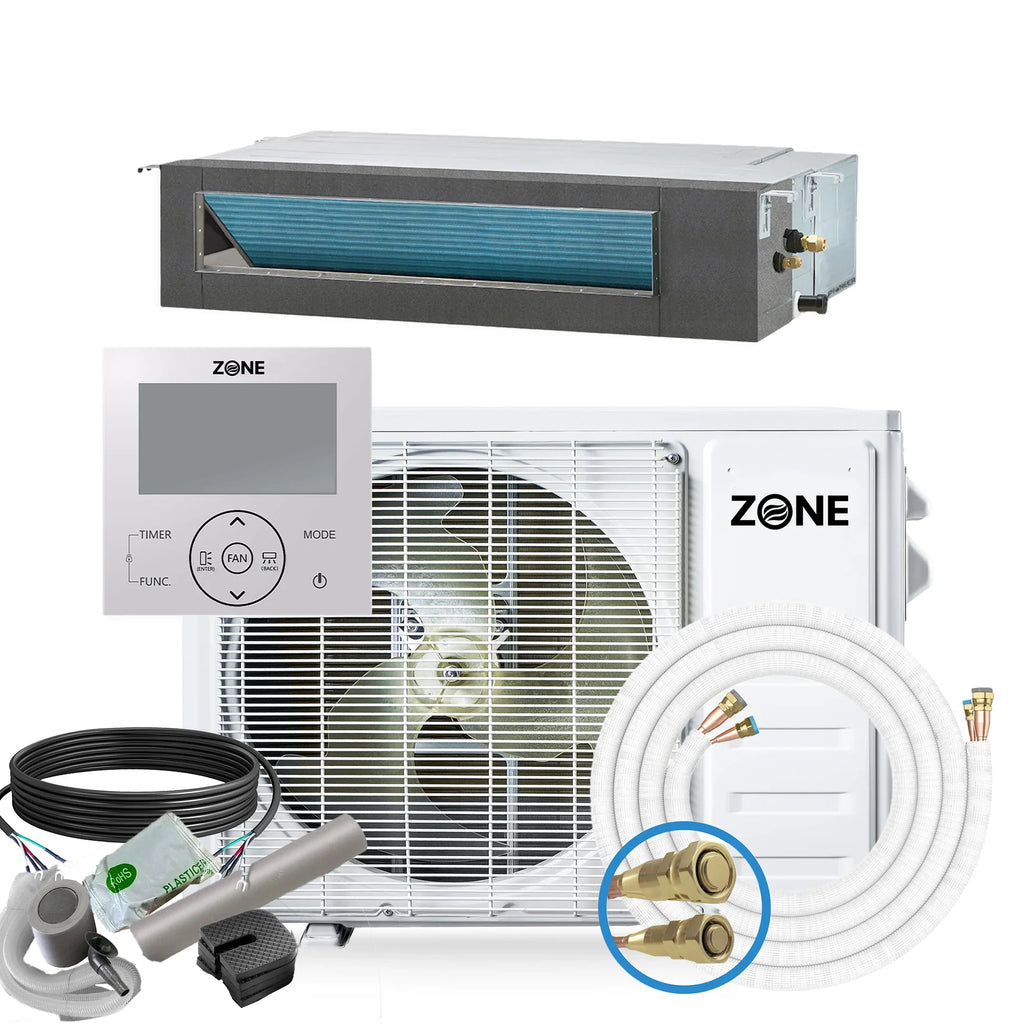

Zone Air® Thin-Air 11,000 BTU 19 SEER2 230V Concealed Mini-Split Heat Pump AC - Up to 550 Sq Ft
$2,699.99
Sale price
$2,699.99
Regular price
Our most popular concealed system for medium-sized spaces from 350-550 sq ft. Completely hidden installation with only discreet ceiling grilles visible. Connect to existing ductwork or add a fresh air intake for ventilation. Ideal for master suites, living rooms, and spaces where aesthetic is paramount.
Specifications
| Power Supply | 208~230V, 60Hz, 1Ph |
|---|---|
| Cooling Rated Capacity | 11,000 BTU/h |
| Cooling Capacity Range | 2,000~12,300 BTU/h |
| Cooling SEER2 | 19.0 |
| Cooling EER2 | 11.0 |
| Heating Rated Capacity | 12,000 BTU/h |
| Heating Capacity Range | 3,100~12,300 BTU/h |
| Heating HSPF2 (Region IV/V) | 8.4 / 7.3 |
| Heating COP2 (47°F/5°F) | 3.34 / 1.8 |
| Refrigerant Type | R454b (pre-charged) |
| Recommended Room Size | 350~550 sq ft |
| Indoor Air Flow (Turbo/Hi/Med/Lo/Mute) | 360 / 330 / 270 / 210 / 180 CFM |
| Indoor Sound Level (Turbo/Hi/Med/Lo) | 43 / 41 / 39 dB(A) |
| Indoor Unit Dimensions (WxDxH) | 27-1/2" x 19-1/4" x 7-7/8" |
| Indoor Unit Weight | 33.1 lbs |
| Indoor Carton Dimensions (WxDxH) | 35-1/2" x 21-7/8" x 9-7/8" |
| Indoor Net / Gross Weight | 33.1 / 40.8 lbs |
| Breaker Needed | 15A (double-pole) |
| Outdoor Sound Level | 52 dB(A) |
| Outdoor Unit Dimensions (WxDxH) | 31-7/8" x 12" x 21-5/8" |
| Outdoor Unit Weight | 58.4 lbs |
| Outdoor Carton Dimensions (WxDxH) | 32-7/8" x 13" x 22-5/8" |
| Outdoor Net / Gross Weight | 58.4 / 65.0 lbs |
| Lineset Length Included | 16 ft included (optional 9 ft extension available) |
| Part Number | zdiy-cd-12I |
| Air Flow (Turbo/Hi/Med/Lo/Mute) | 360 / 330 / 270 / 210 / 180 CFM |
| Net Dimensions (WxDxH) | 27-1/2" x 19-1/4" x 7-7/8" |
| Carton Dimensions (WxDxH) | 35-1/2" x 21-7/8" x 9-7/8" |
| Net / Gross Weight | 33.1 / 40.8 lbs |
| Sound Level | 52 dB(A) |
