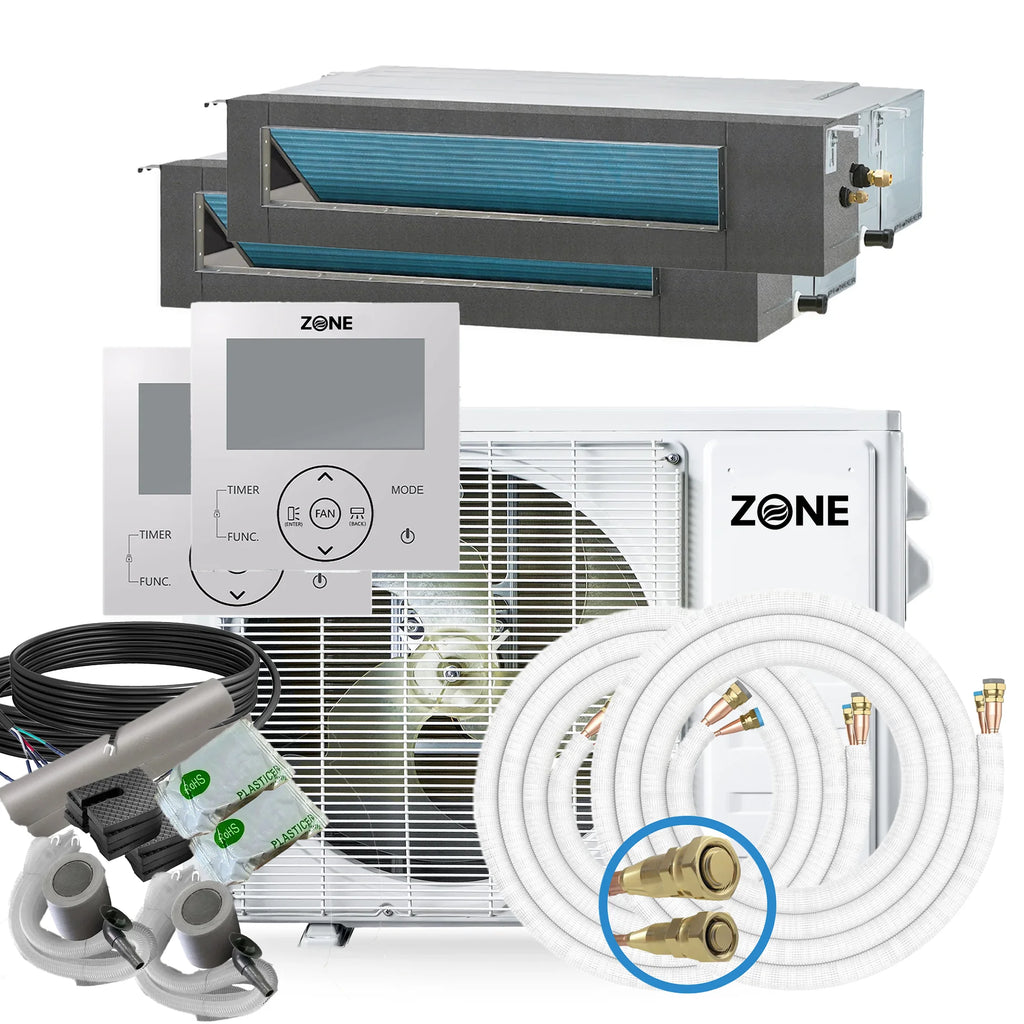

Zone Air® Thin-Air DUAL ZONE 20,500 BTU (11K+9.5K) 19 SEER2 230V Concealed Mini-Split Heat Pump System - Up to 1,025 Sq Ft
$4,699.99
Sale price
$4,699.99
Regular price
Skip to product information
Zone Air® Thin-Air DUAL ZONE 20,500 BTU (11K+9.5K) 19 SEER2 230V Concealed Mini-Split Heat Pump System - Up to 1,025 Sq Ft
$4,699.99
Sale price
$4,699.99
Regular price
Versatile dual-zone concealed ducted solution pairing an 11,000 BTU unit with a 9,500 BTU slim-duct unit for two rooms totaling up to 1,025 square feet. Hidden installation with only supply and return grilles visible. Ideal for a larger living area paired with a smaller bedroom or office.
Specifications
| Total Cooling Capacity | 21,000 BTU/h |
|---|---|
| Per Zone Capacity | 12,000 + 9,000 BTU/h |
| Total Heating Capacity | 22,000 BTU/h |
| SEER2 Rating | 19 |
| HSPF Rating | 10 |
| Voltage | 208-230V / 60Hz |
| Number of Zones | 2 |
| Refrigerant Type | R454B (pre-charged) |
| Indoor Units | 1× 12K + 1× 9K concealed slim-duct units |
| Linesets Included | 2× 16 ft pre-charged |
| Operating Temperature | -13°F to 122°F |
| Sound Level (per unit) | 35–42 dB |
| External Static Pressure | 0.1-0.4" WG |
| Maximum Duct Length | 15 ft per supply |
| Condensate Pumps | Integrated in each unit |
| Part Number | zdiy-cd-11I |
| Net Dimensions (WxDxH) | 27-1/2" x 19-1/4" x 7-7/8" |
| Carton Dimensions (WxDxH) | Coming soon |
| Net / Gross Weight | Coming soon |
