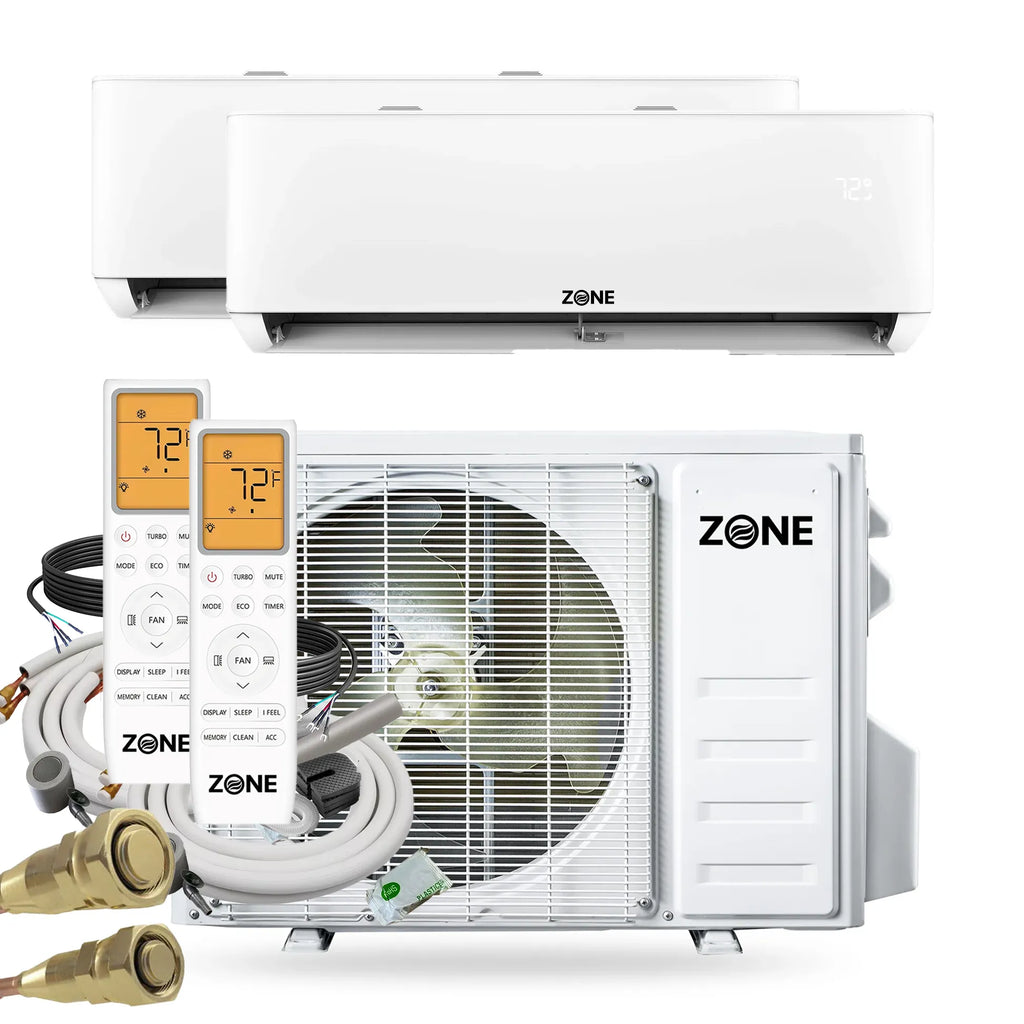

Zone Air® DIY DUAL ZONE 18,000 BTU (9K+9K) 24 SEER2 230V Wall Mount Ductless Mini-Split Heat Pump System with 2x Pre-Charged Linesets - Up to 900 Sq Ft
$3,299.99
Sale price
$3,299.99
Regular price
Compact dual-zone solution with two 9,000 BTU units for two smaller rooms totaling up to 900 square feet. Great for two bedrooms, a bedroom and office, or any two spaces that need independent climate control. Each zone operates independently with its own thermostat and WiFi control.
Specifications
| Total Cooling Capacity | 18,000 BTU/h |
|---|---|
| Per Zone Capacity | 9,000 BTU/h each |
| Total Heating Capacity | 19,000 BTU/h |
| SEER2 Rating | 24 |
| HSPF Rating | 10 |
| Voltage | 208-230V / 60Hz |
| Number of Zones | 2 |
| Refrigerant Type | R454B (pre-charged) |
| Indoor Units | 2× 9K wall-mount units |
| Linesets Included | 2× 16 ft pre-charged |
| Operating Temperature | -13°F to 122°F |
| Sound Level (per unit) | 30–44 dB |
| Part Number | zdiy-mk1-9I |
| Net Dimensions (WxDxH) | 43-1/8" x 8-3/4" x 13" |
| Carton Dimensions (WxDxH) | 45-7/8" x 11-5/8" x 16" |
| Net / Gross Weight | 30.9 / 35.3 lbs |
